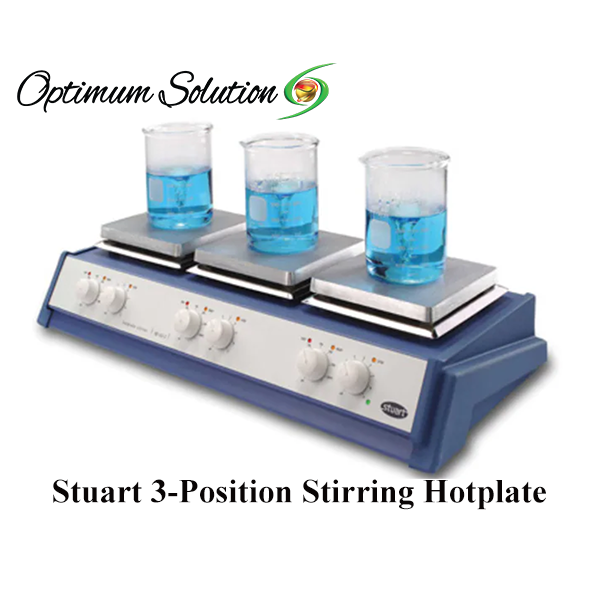

SHP-200-MP Stuart Three Position Stirring Hotplate

The SHP-200-MP Stuart Three Position Stirring Hotplate is a compact, efficient unit designed for simultaneous heating and stirring across three independent positions, each capable of accommodating up to a 2-liter beaker. The powerful magnets ensure strong magnetic coupling, and the aluminum/silicon alloy top plate provides even heat distribution across the surface. This unit is ideal for labs requiring quality control over multiple samples heated and stirred under identical conditions.

Key Features:

• Three independent heating/stirring positions: Allows the user to perform three different or identical tests simultaneously.
• Compact design: Despite its three-position capability, the hotplate occupies minimal space with a footprint of only 600 x 270 mm.
• Strong magnetic coupling: Ensures reliable stirring even at higher speeds, with a stirring range of 100 to 1500 rpm.
• Durable aluminum/silicon alloy top plate: Provides even heating, allowing for precise temperature control from ambient to 325°C.
• Safety features: Includes separate "Hot" warning lights for each heating plate, which activate when the temperature exceeds 50°C.

Specifications:

• Top Plate Material: Aluminum/Silicon alloy
• Dimensions:
• Length: 600 mm (23.6 in.)
• Width: 270 mm (10.6 in.)
• Height: 110 mm (4.3 in.)
• Heating Capacity: Ambient to 325°C
• Stirring Range: 100 to 1500 rpm
• Maximum Container Size: 15 L
• Weight: 11 kg (24.3 lb)
• Voltage: 230 V
• Wattage: 2250 W
• Frequency: 50 Hz
• Controller Type: Analog
• Accessories: Includes three 25 mm PTFE-coated stir bars
• Shape: Square
• Ex Model: SB162-3

This hotplate is an excellent choice for laboratories that require efficiency and precision in heating and stirring, especially in quality control and multi-sample testing scenarios.
