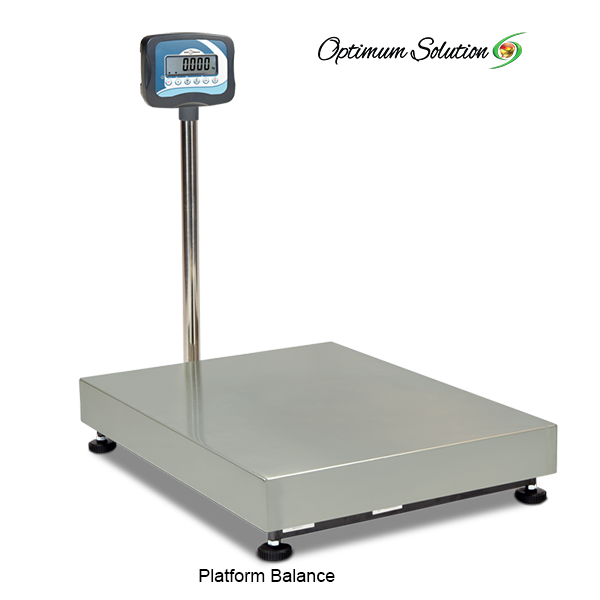

Digital Electronic Balance (150Kg)
Model: TMZ (150Kg)

Specifications

• Capacity: 150 Kg
• Readout: 10 g (starting after 100 g)
• Weighing Pan Dimensions: 400 mm × 500 mm

• Code: 260583
• Capacity: 150 kg
• Readout: 100 g
• Material: Painted Steel
• IP Rating: IP54

Description

A bench-scale industrial weighing machine designed for ease of use and portability. It offers robust construction and advanced features suitable for various industrial applications.

Key Features

1.   Build & Design:

• Platform made of tubular painted steel with a stainless-steel plate.
• Column: 649 mm height with a painted steel attachment base.
• Adjustable feet: Up to 13 mm height adjustment.

2.   Load Cell:

• Aluminium load cell with IP65 protection.

3.   Indicator:

• Material: ABS with IP54 protection.
• Display: Backlit LCD with six 30 mm height digits.
• Backlight Modes: Automatic, Activated, or Deactivated.
• Waterproof keyboard with 5 function keys and ON/OFF.
• ABS support for column; wall anchor holes included.

4.   Power Supply:

• Operates via AC/DC adapter (240Vac 50Hz).
• Rechargeable internal battery (6V/4Ah) with:
• 120 hours of operation (backlight on).
• 160 hours of operation (backlight off).

5.   Programmable Settings:

• Unit selection: Kg, T, G, Lb, LbOz.
• Programmable gravity and auto switch-off (1–99 minutes).

6.   Other Features:

• Cable Length: 1200 mm (platform to indicator).
• Operating temperature: -10ºC to +40ºC.
• Configurations: Unique range, multi-range, or multi-interval.

Functions

• Accumulation & Totalization: Combine weights.
• Piece Counting: Count items using a preset piece weight.
• Zero & Tare: Reset scale or deduct container weight.
• Hold Modes: Four modes for animals, peak value, and stability needs.
• Check Weighing: Alerts for weight limits (visual/audible).
• Gross/Net Weight: Differentiate between total and actual weights.
• Advanced Digital Conversion: Three AD converter speeds (High, Medium, Low).

This digital balance is designed for industrial applications demanding precision, durability, and versatility in weighing operations.
